DS35 $660.00

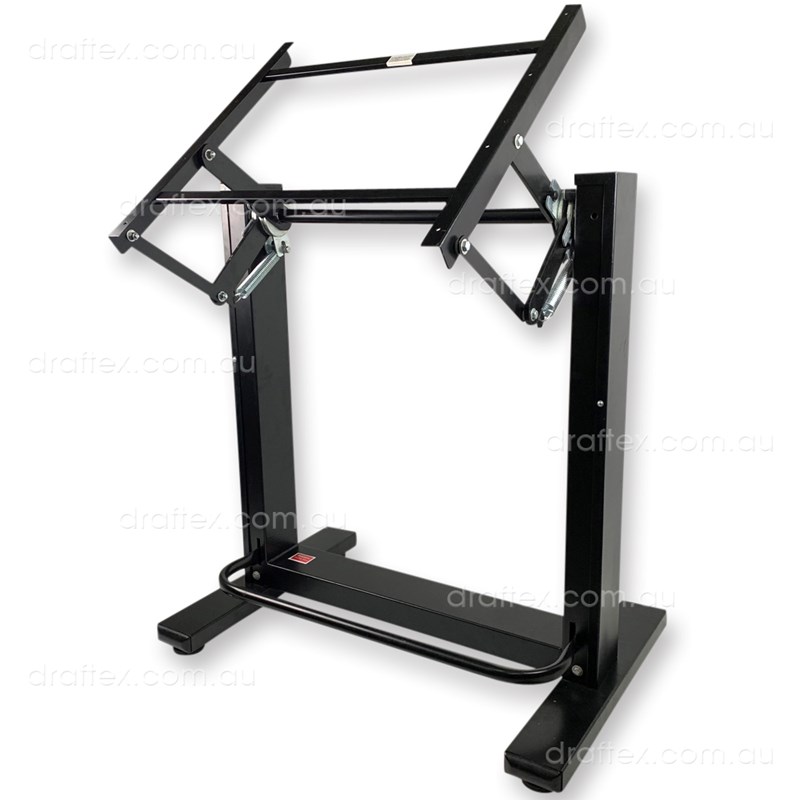

  • Ds35 Isomars Drafting Stand Foot Operated Spring Compensated Height And Angle Adjustment For Boards Up To 800 X 1200Mm View 1

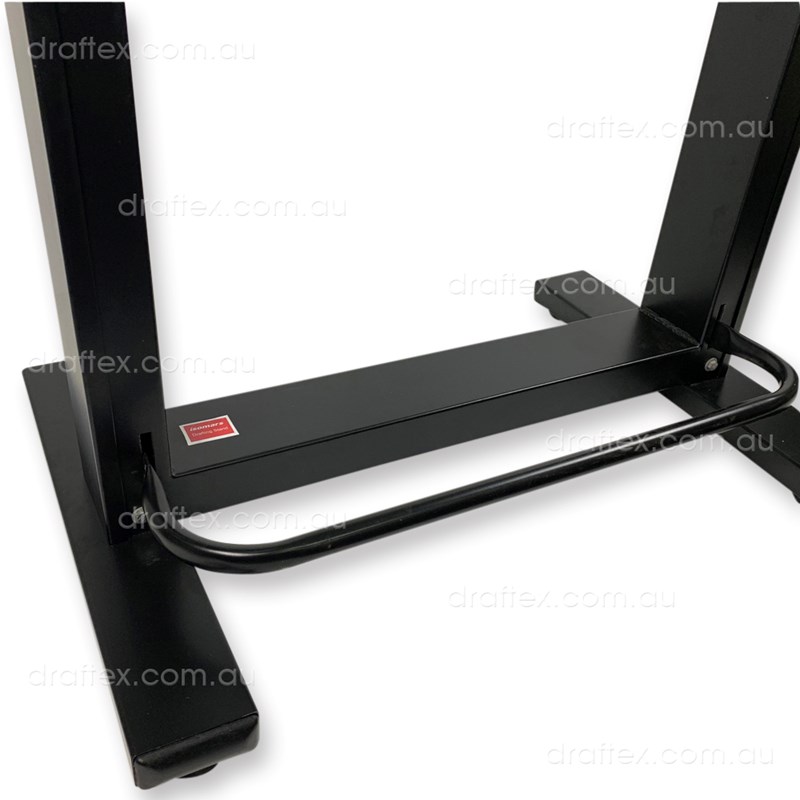

  • Ds35 Isomars Drafting Stand Foot Operated Spring Compensated Height And Angle Adjustment For Boards Up To 800 X 1200Mm View 2

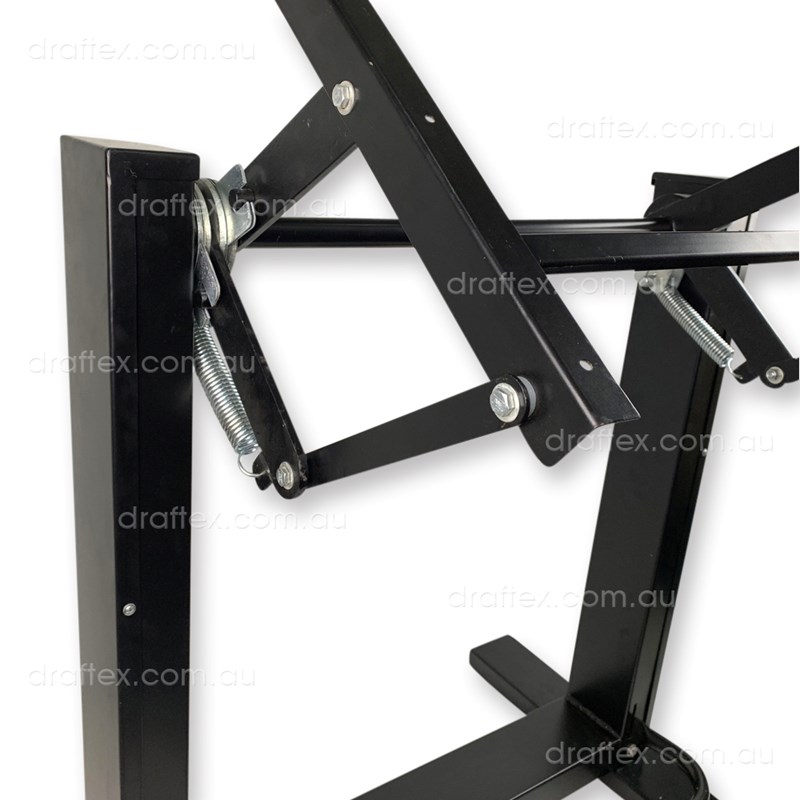

  • Ds35 Isomars Drafting Stand Foot Operated Spring Compensated Height And Angle Adjustment For Boards Up To 800 X 1200Mm View 3

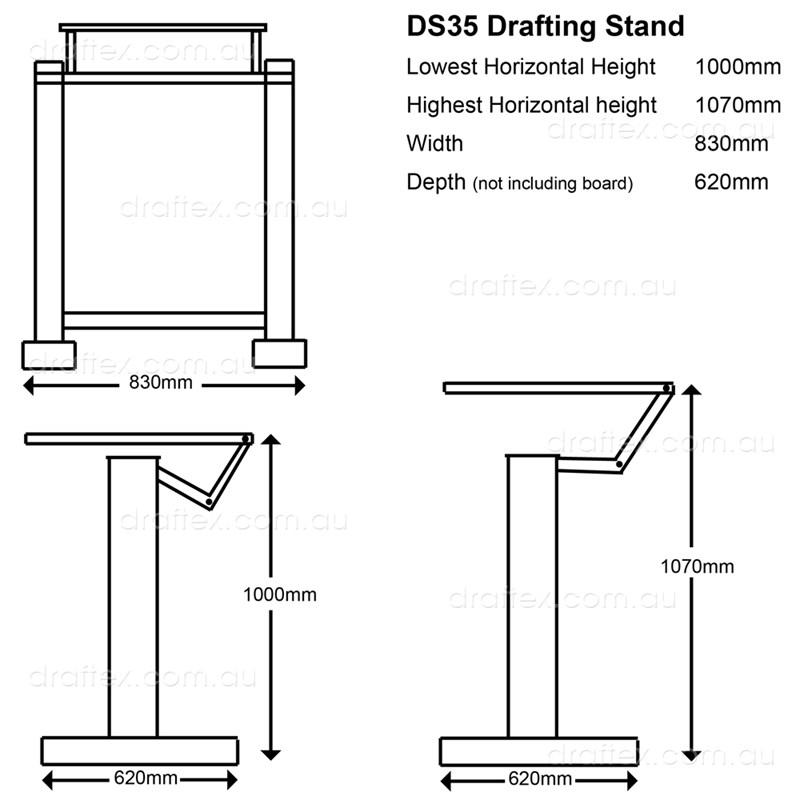

  • Ds35 Isomars Drafting Stand Dimensions Minimum Max Heights Diagram
DS35
Quantity

Isomars DS35 Drafting Stand is a traditional top of the range spring compensated drafting stand for boards up to 1000 x 1500mm.

  • Very Solid and Stable
  • Spring Compensated for Height and Angle Adjustment
  • Foot Brake Bar
  • Suitable for Boards up to 1000 x 1500mm
  • Integrated Pencil Tray
  • Drawing Board and Rule Shown Not Included in Price

Isomars Drafting Stand DS35 is a traditional top of the range spring compensated drafting stand for boards up to 1000x 1500mm. Board is adjustable through the height and angle range simultaneously while being supported by springs. Adjustment is made by lifting the foot brake bar, moving the board to whatever desired angle and height, then locking in place by pressing back down on the brake. Very stable and solid. Not recommended for amateur installation – please consult Draftex for further guidance on this subject.

Code Unit Description Dimensions Weight
DS35EachSpring Compensated for Height & Angle1050L x 830W x 390H43200 (g)
