1201 A1 Drafting Unit $140.75

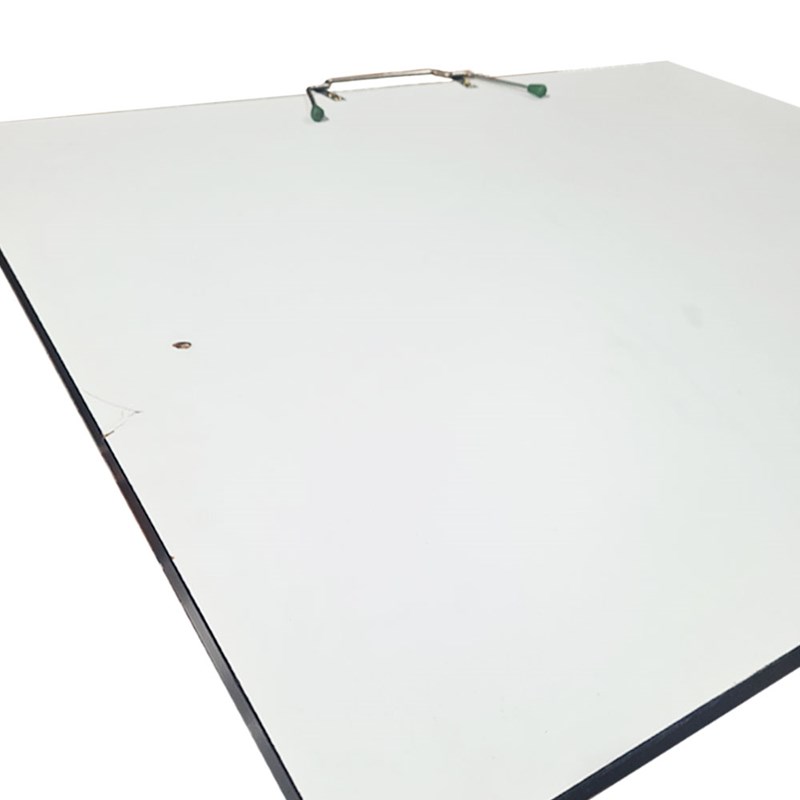

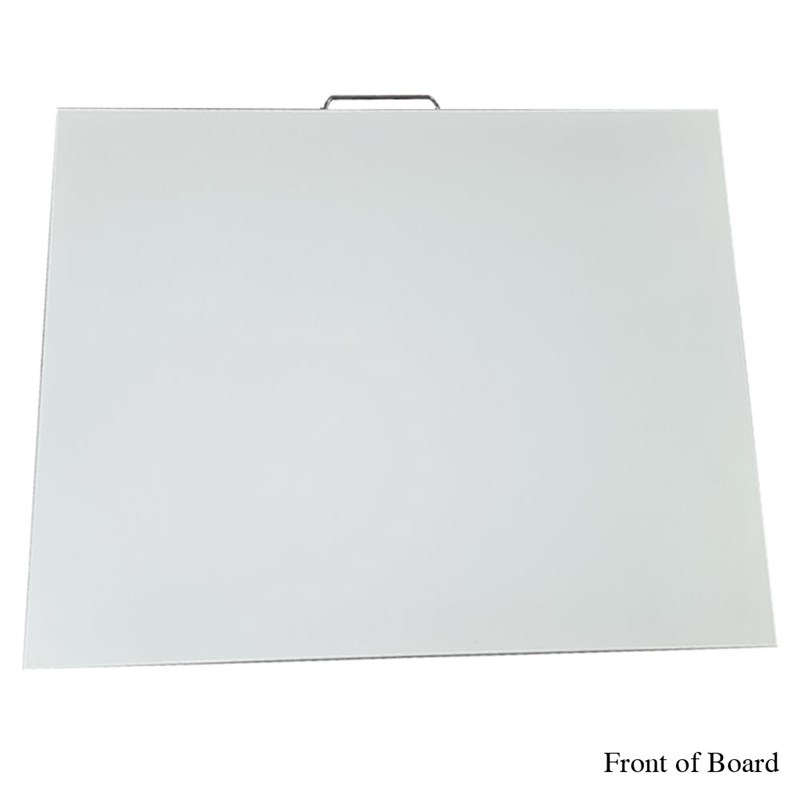

  • 1201 Draftex A1 Desktop Drafting Board Carryhandle   Tilt Stand View 1
  • 1201 Draftex A1 Desktop Drafting Board Carryhandle   Tilt Stand View 2
  • 1201 Draftex A1 Desktop Drafting Board Carryhandle   Tilt Stand View 3
  • 1201 Draftex A1 Desktop Drafting Board Carryhandle   Tilt Stand View 4
1201
Quantity

Draftex 1201 A1 Portable Desktop Drawing Board consists of a drawing board designed to suit A1 size drawings and is equipped with a kick-stand/handle unit for angle and portability.

  • Board Size: 900 x 720mm
  • Suits A1 Size Drawings
  • Ideal For Use with Tee Square
  • Carry Handle Folds Out to Become Tilt Stand

Links for Tee Squares and Set Squares

The Draftex 1201 Portable Drawing Board is the simplest of the A1 size range.
Thought has been given to the vertical dimension of the board (700mm) to allow for an A1 size sheet (594mm on the vertical side) to be taped in place above the top edge of a Tee Square.
This allows full drawing coverage of the sheet.
The Portable Drawing Boards carry handle is designed to act as a tilt support to give a slightly angled surface when in use.

Product Range

Draftex Models 1521, 1522, 1421, 1422, 1301, 1302, 1201, 1202 and DBA3

Background

The Draftex Portable Drawing Boards in Models 1521 thru to 1202, are a range developed in response for the clear demand for a good quality small drawing board at a realistic price.

Our goal was to find well manufactured components and assemble them in to a well priced range of portable drawing boards. At the time we were driven to do this by the high price of imported units that were regularly admired in our showroom but were obviously outside the budget of most people. Our quest to produce our own units eventually led us to seven different suppliers - each with their own item of componentry.

To bring the costs down to a level that would allow affordability to the widest market we had to commit to serious quantities of components and have them manufactured to our standards by the most suitable factories. We then assemble those components in our own facility and every unit is hand checked and packed by our own staff. The end results saw us offering the Draftex Portable Drawing Board range at a fraction of the cost of ready made imported boards. This had the planned affect and many thousands of them are in use in offices, universities, schools and home studies across Australia.

Some of the innovations incorporated included extending the board size to allow for Parallel Rules or Tee Squares to be used without either of these items covering the drawing area of the paper.

Models 15 and 14 have locking Parallel Motion Rules that allow the user to draw accurate parallel lines. When in the locked position they free the hands for using an adjustable set square for angles or a scale rule to measure.

The Models 13 and 12 can be used as a plain drawing surface or with a Tee Square. If a product has the last number of its code as a "1" it is designed for A1 sized paper and if it ends in a "2" it suits A2 size.

The Market

Users of the Draftex range of Portable Drawing Boards include Architects, Landscape Designers, Interior Designers, Kitchen Designers, Students, Builders and Construction Companies, Schools, TAFE Colleges and Universities.

Competitiveness

Draftex Portable Drawing Boards in the Range 1521 to 1202 have a unique place in the market as a result of our efforts to make a quality product at a low price. There were some UK imports available once but the Draftex models were better performers at around a third of the cost. We believe they are no longer available.

Other Terms for these Products

Drawing Boards, Drawing Units, Drawing Kits, Desktop Drawing Boards, Drafting Boards, Drafting Units, Board and Tee Square Sets, A1 Drawing Boards, Architects Drawing Boards

Code Unit Description Dimensions Weight
1201Each1201 Drawing Board A1 with Handle990L x 840W x 130H10000 (g)

Related Components

Melamine Drawing Boards

Drawing Boards in Sizes to Suit our Drafting Machines and Parallel Rules.
